Longitudinal Lead Screw DTP000058
DTP000058
2182749
Molecular Imaging and Nuclear Medicine
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • High Quality Material
  • 1-5 ACME Threads
  • Internal M8 Thread on one side
  • Good Dimensional Accuracy

Product Overview

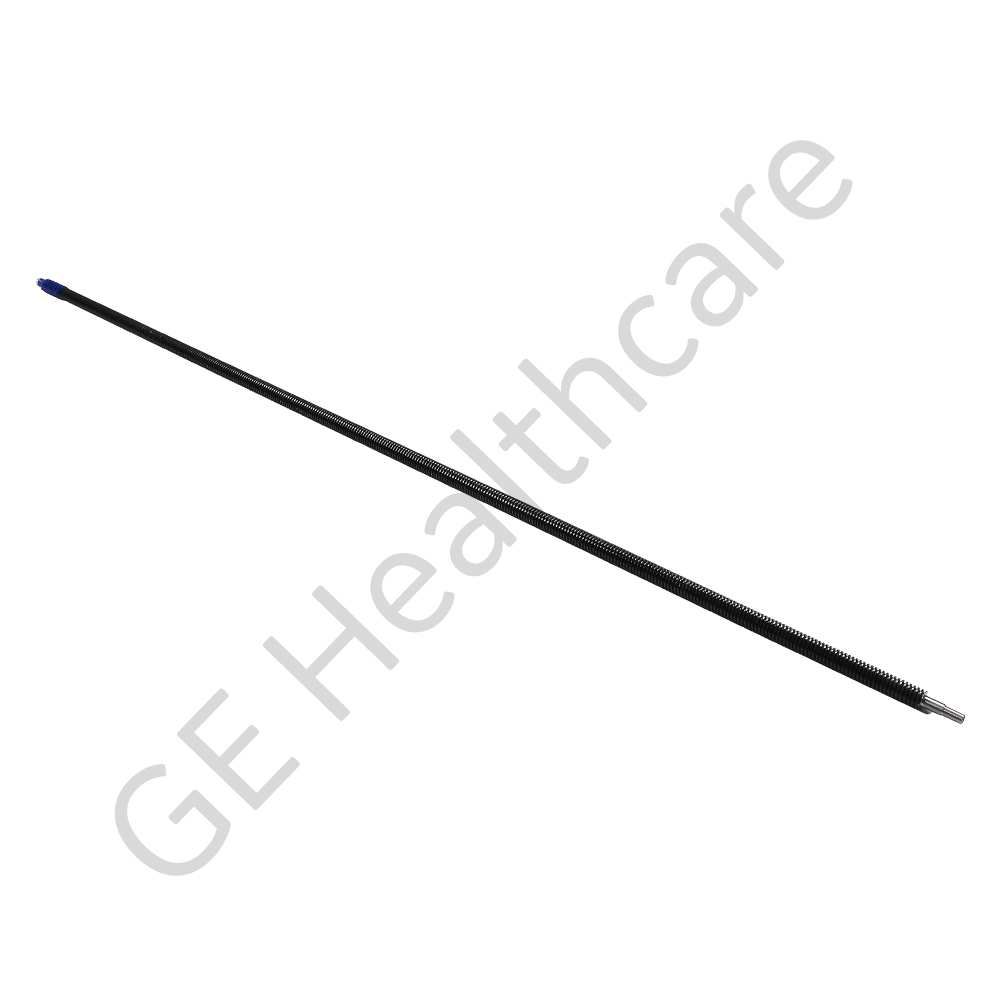

This Longitudinal Lead Screw is used to translate turining motion into linear motion. The lead screw comes with 1 inch (1-5) right hand ACME threads over a length of 1847.85 mm length. One end of the lead screw comes with a 25.4 mm long cylindrical pin of 15 mm diameter while the other end comes is 50.8 mm long with a stepped pin with a step of 12.7 mm machined over the 15 mm diameter. The stepped side is 25.4 mm long with 12mm deep M8 internal threads for mounting. This assembly can be used in the upper or top assembly of MG table used with GE's Molecular Imaging and Nuclear Medicine systems. The item will be shipped in suitable packaging to provide adequate protection during transit.

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2182749
