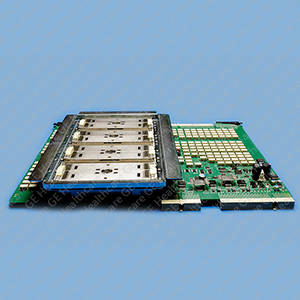

Ichiro R4 Relay Board with 4 DLP ports 5441000

5441000
Ultrasound
LOGIQ E9
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Field Replaceable Unit (FRU)
  • With 4 DLP Ports
  • Fuse Protected Circuit
  • Flamability Rating of 94V-0

Product Overview

This Relay Board is designed to route transducer channels between the active probe and active Transmitter or Receiver modules. This Relay Board is located in the Card Rack near the front of the scanner, and next to the probe ports. It contains four DLP probe connectors, three connector support probes with 192 channels and one connector is designed to support probes with 256 channels. It also includes 288 Relays that switch connections between the active probe connectors. All signals to the Doppler probe are routed via the backplane and cables to the Doppler probe connector which has has two XD channels. The board comes with 2 auto recover and a fast action fuse for circuit protection. This Field Replaceable Unit (FRU) Relay board can be used with Logiq E9 Ultrasound Systems.

Compatible Products

LOGIQ E9

LOGIQ E9

The LOGIQ* E9 is a versatile general imaging system that helps meet a wide variety of general imaging needs. As healthcare evolves and ultrasound exams become more in demand, you need the ability to adapt to the changing environment with an ultrasound system that gives you flexibility, ease of use, speed and reliability.

The LOGIQ E9 can help you:

Deliver extraordinary image quality on a broad spectrum of patient body types.
Visualize blood flow without the limitations of Doppler
Enhance your workflow.
Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
Visually track your position during a scan.
