DTRX64 II Assembly 5252321-2U
5252321-2U
Ultrasound
Other Ultrasound
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Provides Strong Transmit Bursts
  • 64 channels of analog and digital signal conditioning circuit
  • Compact Size
  • Reliable performance

Other Buying Options


Product Overview

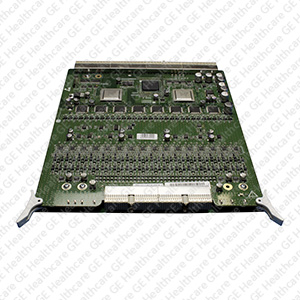

This DTRX64 II Assembly is used Analog and Digital Signal Processing. It has 64 channels of analog and digital signal conditioning circuits that have the ability to transmit a high voltage pulse, to receive and amplify the echo-backed small signals from transducer through an Interface board. Each channel has a low-noise and active input termination pre-amplifier (LNA), voltage controlled amplifier (VGA), Low pass filter (AAF) and an analog to digital converter (ADC) in its receive path, and a dual-TX-driver and TR switch in its transmit path. A Transmit/Receiver Switch (T/R Switch) is a diode configuration that allows a pulser to drive the transducer, and protects the receive preamp from large negative and positive voltages produced by the transmitter. The assembly, which includes MLB64 II and DTD64 circuit boards, can be used with Logiq P6 Ultrasound systems. 5252321-2U
