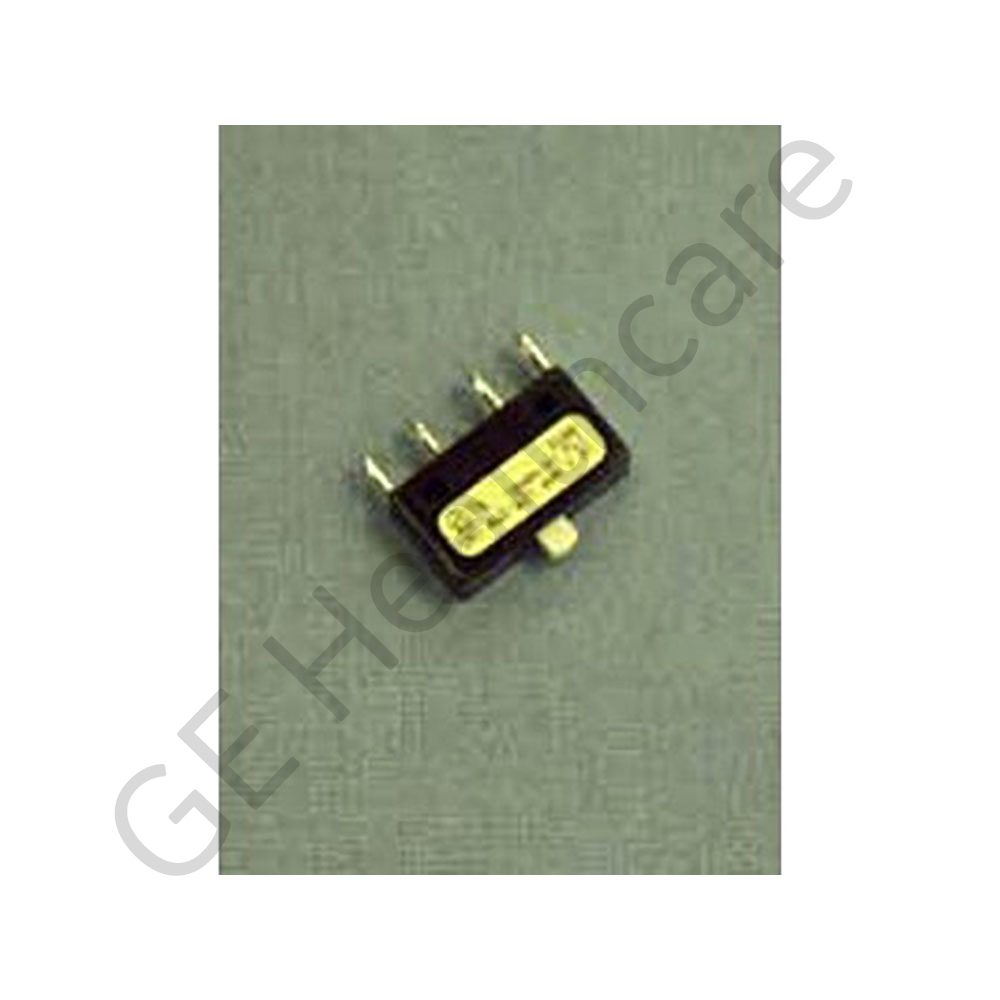

SPDT-DB Snap Action Switch

46-303827P1
82943
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Compact Dimensions
  • SPDT-DB (Single Pole Double Throw- Double Break)
  • Up to 10 amps switching capability
  • High contact pressure

Product Overview

This switch is miniature in size and feature up to 10 amps switching capability of 100,000 cycles. The snap-action contact mechanism makes a specified motion with a specified force to open/close a circuit with an actuator outside the enclosure. It uses the mechanism by which the moving contact quickly moves from one fixed contact to another fixed contact with minimal relation to the speed at which the switch is operated. The mechanical life of the switch is one million cycles. Its terminals are sealed against solder flux entering the switch and are bright acid tin plated for excellent solderability. This Switch features a double break snap action mechanism.

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
82943

82943
