EXTERNAL RADIAL MOUNT E-RING 0.625 SHAFT DIA 0.479 FREE DIA-.042 THK

46-220277P24
Magnetic Resonance Imaging
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good Corrosion resistance
  • Rugged
  • For one time use only
  • Good Electrical & Thermal Conductivity material

Product Overview

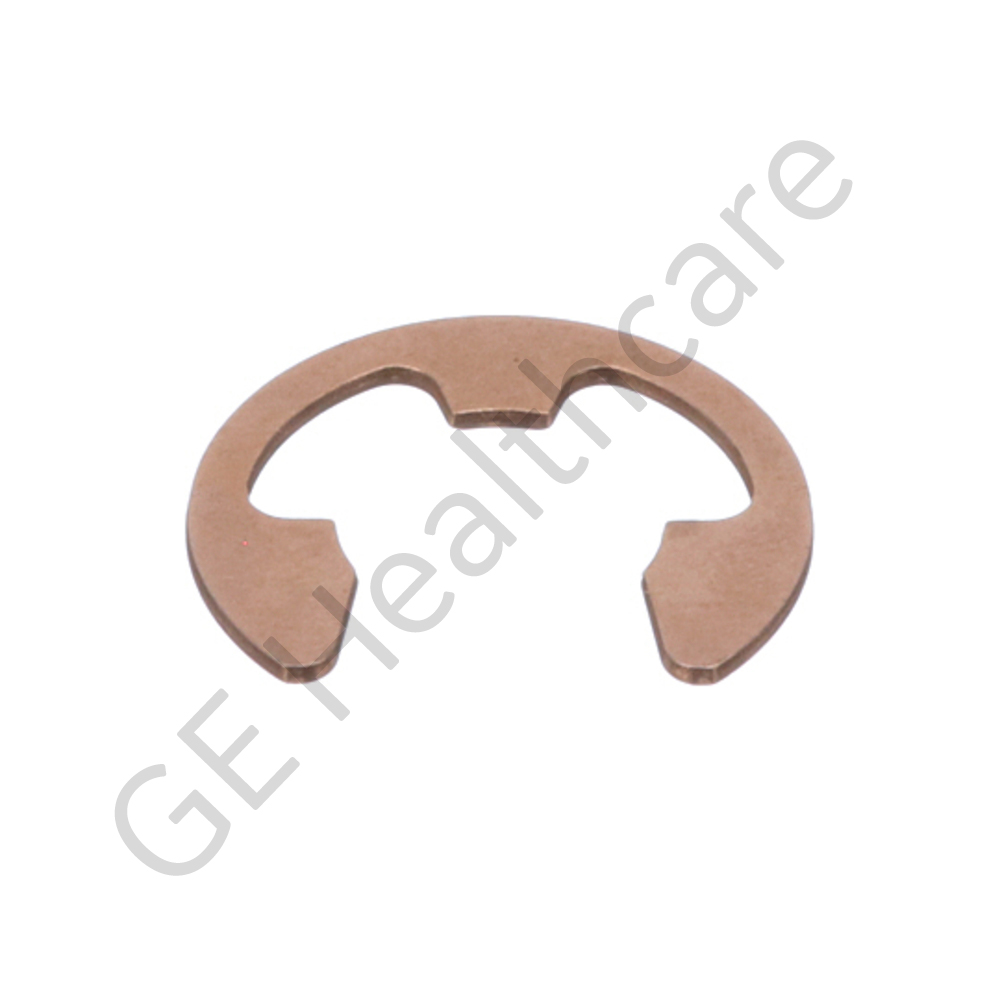

This external retaining ring comes in a shape of english alphabhet "E" thus commonly known as E-Ring, basically it is a type of fastener that holds the components or assemblies onto a shaft or in a housing/bore when installed. These E-Rings are typically installed on a externally machined groove of the shaft, the rings have no lug holes and must be installed using applicators and once installed they act as a shoulder or collar which retains the specific component or assembly in place. The "E" shape exert a pre-load on an assembly when installed in the groove. This also takes up the end-play and acts like a spring, which keeps the assembly in compression. The use of non-ferromagnetic Beryllium Copper Material enhances the corrosion resistance which makes it suitable for use in assemblies of MRI systems. This E-Ring is used in the lower base assembly of Lite 2 Table, Dock Assembly, GEM 3T, PET table etc ,and compatible with GE's Brivo 355, DIscovery 750 Surgical 3T, 750W GEM, Optima 360 1.5T, Signa Creator 1.5T etc systems.

Compatible Products

Brivo 355

Brivo 355

Discovery 750 Surgical 3.0T

Discovery 750 Surgical 3.0T

Discovery 750w 3.0T WU_0753

Discovery 750w 3.0T WU_0753

Discovery 750w GEM 3.-T

Discovery 750w GEM 3.-T

Discovery 750 3.0T WU_0755

Discovery 750 3.0T WU_0755

Optima 360 1.5T

Optima 360 1.5T

Signa Creator 1.5T

Signa Creator 1.5T

Signa Excite 1.5T

Signa Excite 1.5T

Signa Explorer 1.5T

Signa Explorer 1.5T

Signa HD 1.5T

Signa HD 1.5T

Signa HD 3.0T

Signa HD 3.0T

Signa HDe 1.5T

Signa HDe 1.5T

Signa HDx 1.5T

Signa HDx 1.5T

Signa HDx 3.0T

Signa HDx 3.0T

Signa HDxt 1.5T

Signa HDxt 1.5T

Signa HDxt 3.0T

Signa HDxt 3.0T
