CATCH ON RFX/SFX GRASP HANDLE ASSEMBLY STEEL PLATE

46-194703P1
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good Corrosion Resistance
  • With Countersink Holes
  • Curved Edges
  • F70B5A Finish Steel

Product Overview

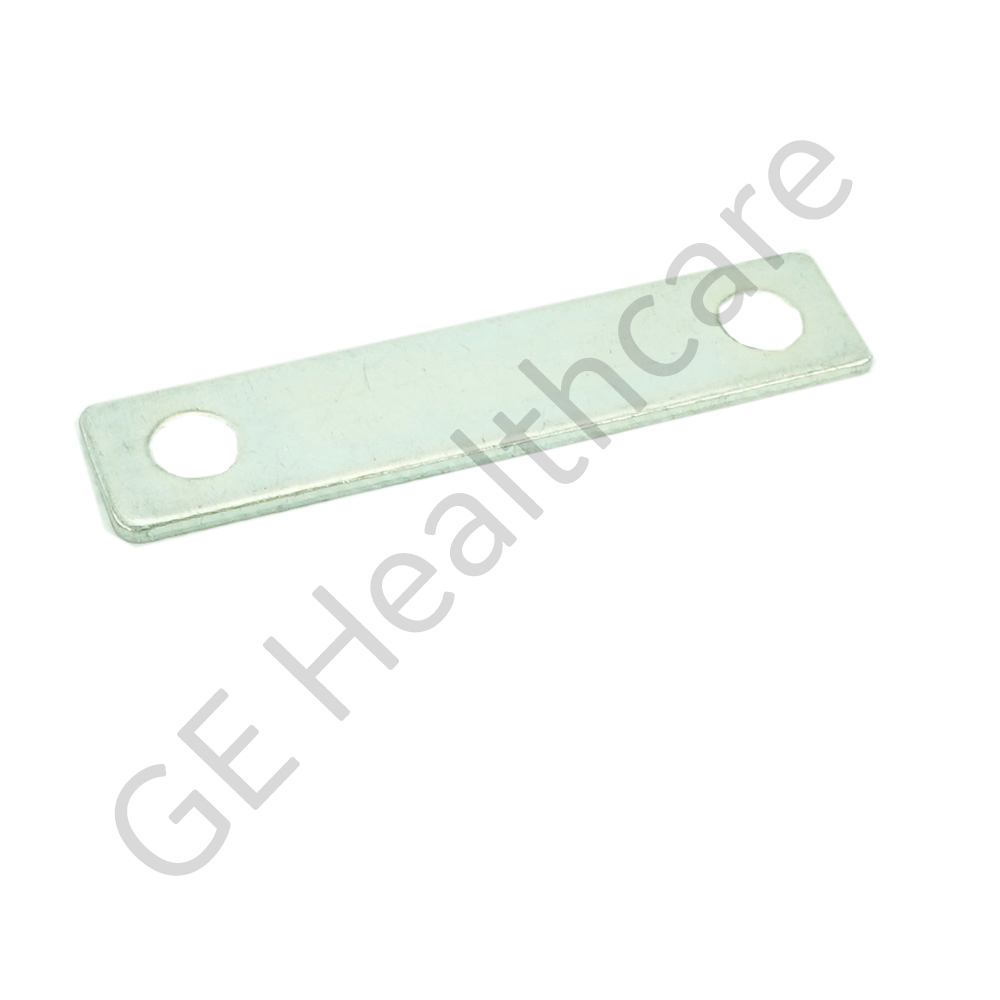

This Grasp Handle Catch plate is used in the handle assembly of RFX/SFX Table assembly where it is fastened to the bracket. The catch is made up of 0.063 inch thick, 0.438 inch wide steel sheet which is precisely cutted to a length of 2 inches. The catch comes with 2x 0.201 inch diameter countersink holes through which it can be fastened to the handle bracket using appropriate screws. From safety and aesthetics perspective, all four edges of this catch assembly comes with 0.06 Radii while the countersink holes provides a neat and smooth front finish. The F70B5A finish on the catch enhances its corossion resistance and provides a uniform and even surface. This catch plate assembly is compatible for use in the table assemblies of GE's RFX-90 X-Ray Systems. The Handle Catch Steel Plate will be shipped in suitable packaging to provide adequate protection during transit.
