Shaft for Vertical Brake

46-177236P1
X-Ray
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good Corrosion Resistance
  • High Tensile & Ultimate Strength
  • Wide Operating Temperature Range
  • Chamfered Edge

Product Overview

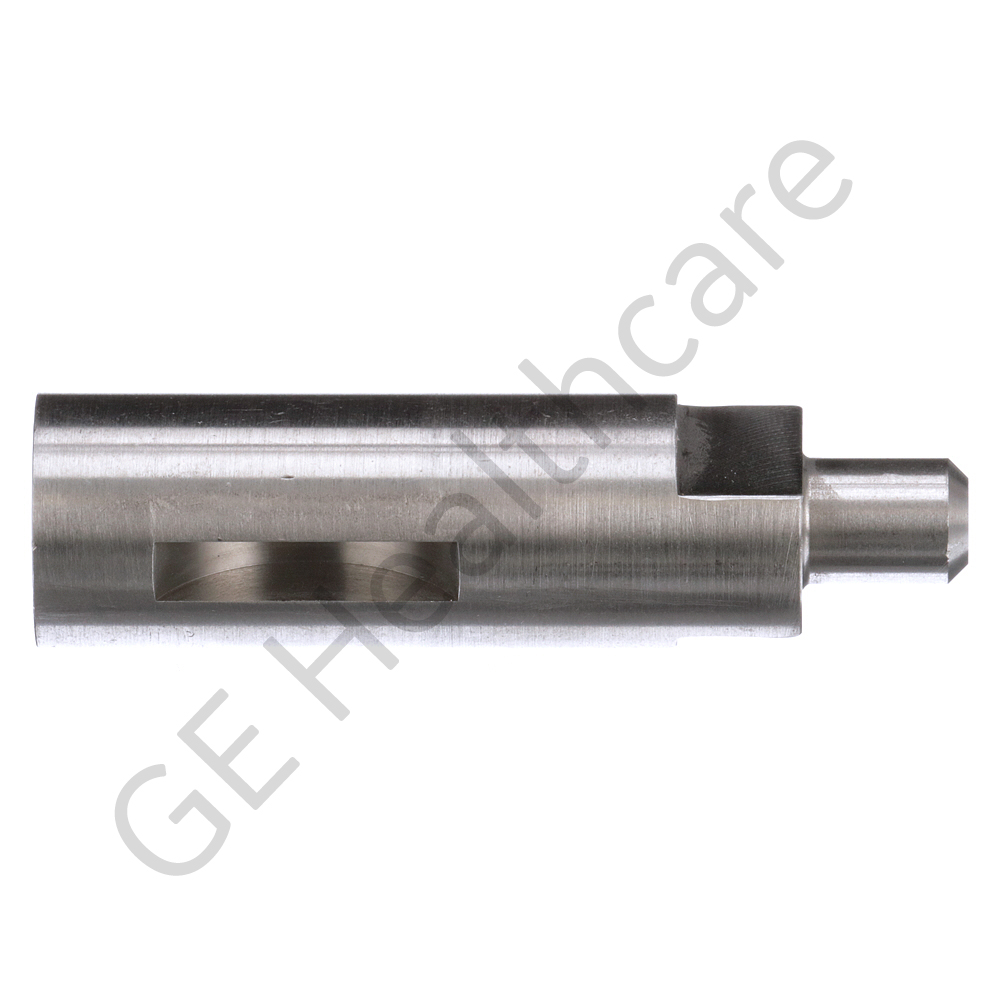

This Vertical Brake Extension Shaft is a 1.80 inch long cylindrical rod which is machined out of AISI 304 Stainless Steel rod which is a low carbon, non-magnetic steel with excellent corrosion resistance and good mechanical properties. The shaft is precisely machined with a woodruff key way on its major diameter and comes with a slotted end of 0.24 inch length along with a 0.32 inch long pin on the other end. The 0.247 inch diameter pin of this shaft comes with 0.04 X 45 Degree chamfer that aids in easier installations. Removal of internal stresses through annealing and uni-construction design of the shaft assures good toughness and reliable operation during demanding load conditions. This non-magnetic stainless steel shaft can be used in the XT suspension assemblies which are used along with GE's X-Ray Systems. The item will be shipped in suitable packaging to provide adequate protection during transit.

Compatible Products

Precision 500D

Precision 500D

Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.

Revolution XRd

Revolution XRd
