EMC Filter TRI V2B 2209840-4

2209840-4
Computed Tomography (CT)
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Reduce high frequency electronic noise
  • Easy to connect/disconnect
  • Three phase Input/Output
  • Circuit Protection

Product Overview

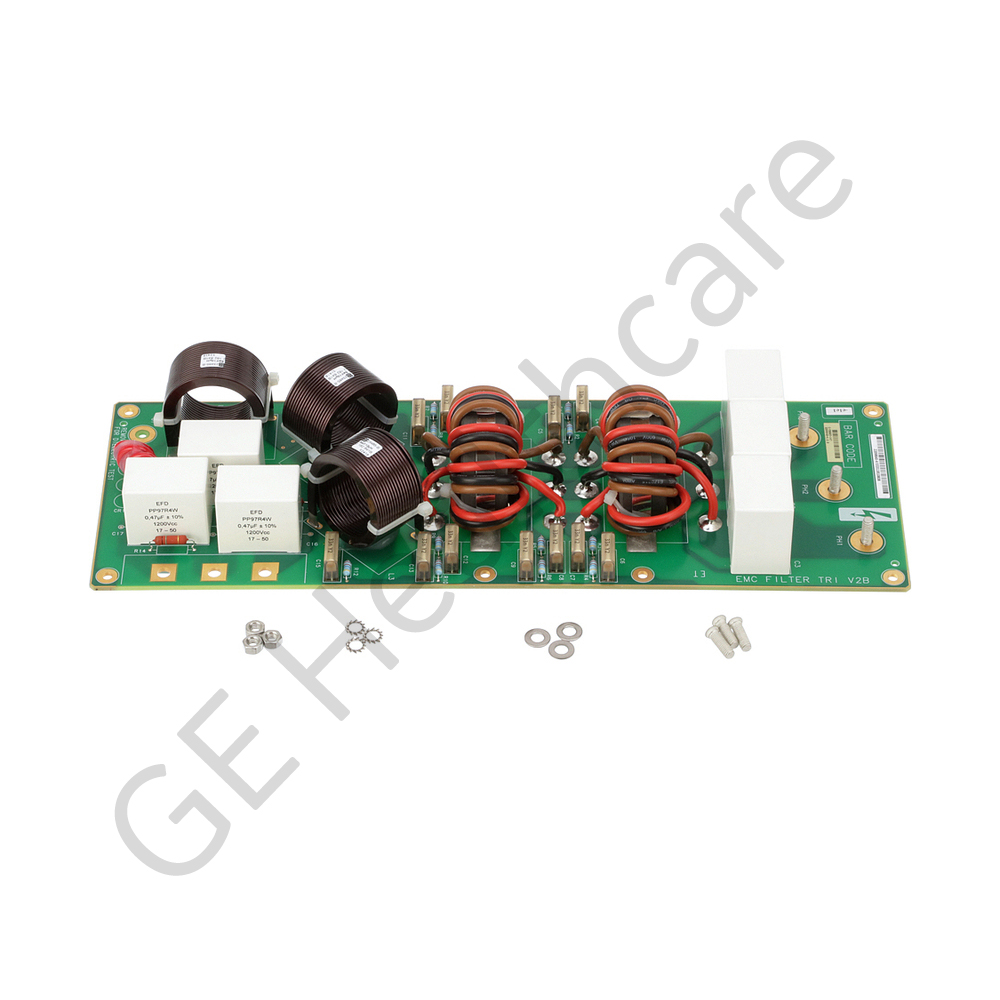

The EMC filter design is critical to the electromagnetic compatibility, EMC performance. The EMC filter provides the required level of attenuation of the unwanted signals while allowing through the wanted signals. The circuit board comprises of capacitors, varistors, inductors, resistors, air core inductors and studs. The EMC Filter printed wiring board (PWB) is a double sided board made up of FR-4 Glass fiber, which is a composite material that consists of glass fabric, electrical grade epoxy resin. The material is strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. The board thickness is specified as 2.4 mm (standard is 1.6 mm) to increase stiffness and stability. The assembly uses high quality components meeting the applicable standards for reliable operation. This EMC filter bard can be used with GE's Discovery XR656G2, Definium 6000, Discovery XR656, Definium 8000, Discovery IGS 5x0, Discovery IGS 620, Discovery IGS 730, Optima XR646, Innova Biplane and Precision 500D systems.

Compatible Products

Discovery XR656G2

Discovery XR656G2

Definium 6000

Definium 6000

Discovery XR656

Discovery XR656

Definium 8000

Definium 8000

Discovery IGS 530

Discovery IGS 530

Discovery IGS 520

Discovery IGS 520

Discovery IGS 620

Discovery IGS 620

Discovery IGS 730 WU_0900

Discovery IGS 730 WU_0900

Discovery IGS 540

Discovery IGS 540

Optima XR646

Optima XR646

Innova Biplane

Innova Biplane

Precision 500D

Precision 500D

Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.
