Power Switch Wire Harness RoHS

2074885-001
6600-0707-700
Maternal Infant Care
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Strain Relief on Cable Exit
  • Compatible design
  • Reliable Operation
  • Easy to Connect

Product Overview

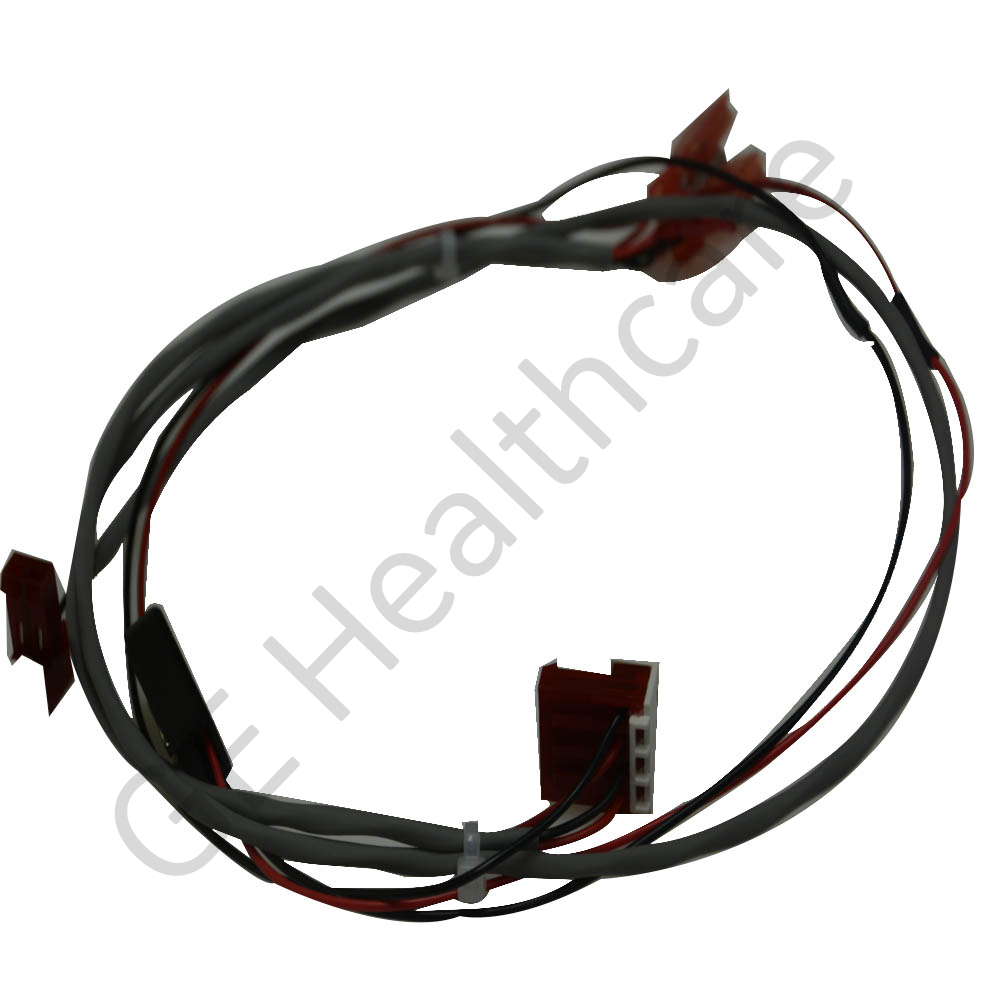

The Power Switch Wire Harness is a specially designed wire harness used in Maternal-Infant Care systems. It includes a 2 position wire to board connector, a 4 position wire to board connector, 4 quick connect terminals, a battery connector and wires of size 22 AWG. All these parts are interconnected to form complete harness. The wire insulation is made of high quality Poly-Vinyl Chloride (PVC) material which has good chemical resistance and high strength. A strain relief is provided for the transition of wire from connector, which helps to relieve stress from the cable and prevent it from breaking due to additional stress. All the quick connect termianls are fully insulated and can be used to connect standby switch. The provided wire to board connector to be connected with relay board and batter coonector is for battery. This harness can be used with GE's Giraffe OmniBed and Giraffe Incubator Maternal-Infant Care systems.

Compatible Products

Giraffe Incubator

Giraffe Incubator

Giraffe OmniBed

Giraffe OmniBed

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
6600-0707-700
  • ASSY-LAU, HARNESS POWER SWITCH, Manufacturing assemb
